Patient Cases

Syncope Patient Cases

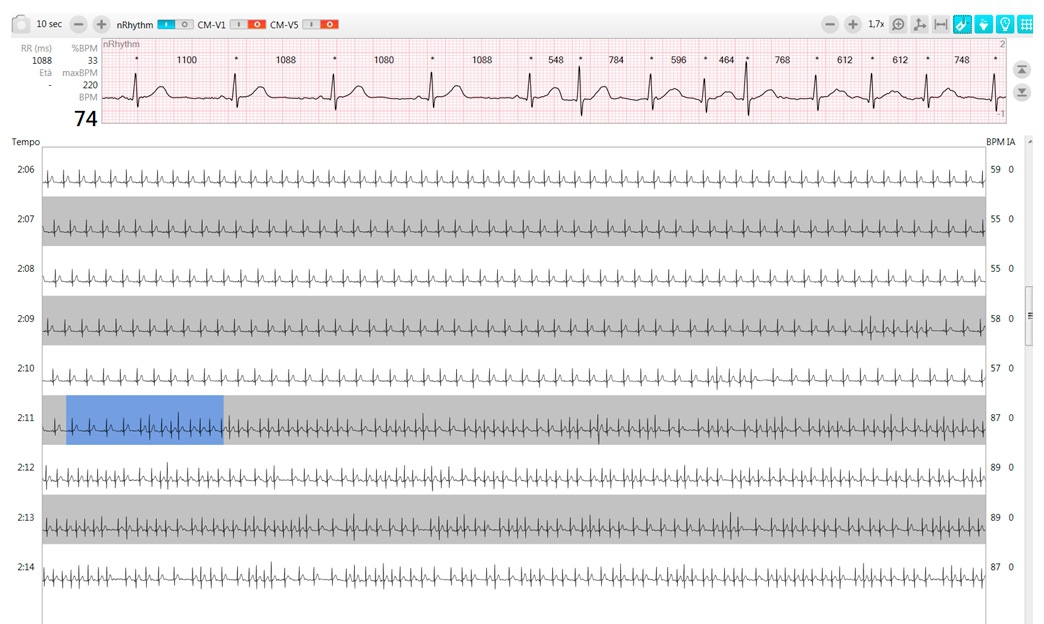

Patient 1 case: Syncope

Patient: 14 years old female.
Symptoms: Infrequent and unexplained syncope episodes.
History: Several test performed (48h Holter, stress test and tilt table) with negative results and syncope episodes not detected.
ECG monitoring days: 60 days with nuubo60 one lead ECG wearable band.
ECG analysis mode: Cardiac Monitor Heart Rate

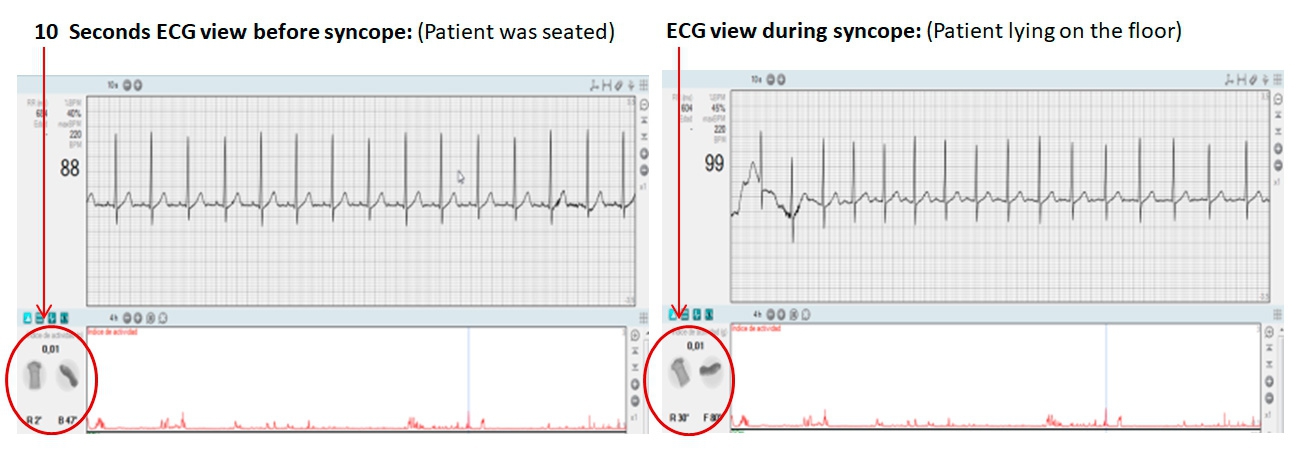

Findings: The patient experienced a syncope on day 45 (1.5 months) and the episode was registered. The event analysis .discarded a cardiac origin. Further tests revealed that the patient suffered from epilepsy episodes.

Patient 2 case: Syncope

Patient: Girl 14 years old
Symptoms: Syncope and palpitations
History: Unexplained syncope
ECG Monitoring days: 30 days
Findings: she had the syncope the 23th day of monitoring, with a TPSV of 190bpm

Palpitations Patient Cases

Patient 1 case: Palpitations due to Tachycardia

Patient: 9 year old child
Symptoms: High frequency rate palpitations.
History: Symptoms occur more often when playing but have not been detected previously by 12 lead ECG nor Holter 24 hour
ECG Monitoring days: 7 days with nuubo one lead ECG wearable band
Findings: While playing at school a Supraventricular with aberrance tachy/branch block episode is registered

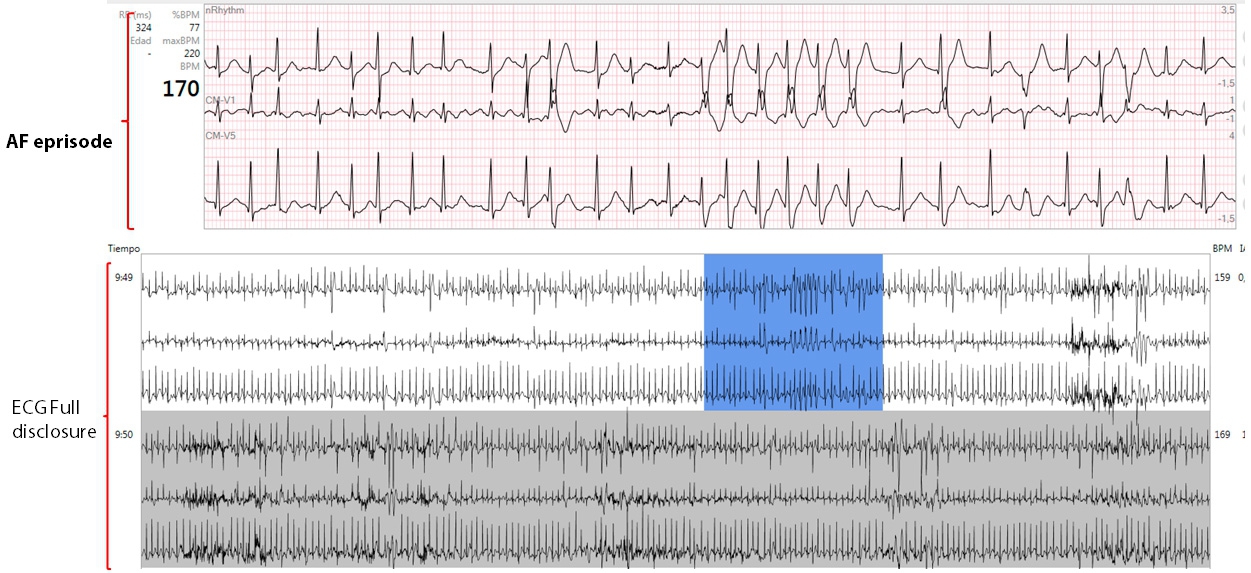

Patient 2 case: Palpitations because of AF

Patient: 46 years old male
Symptoms: Palpitations twice per month
History: The patient has no previous adverse event clinical history and he is indicated for a 24 hour Holter that happens to be negative.
ECG monitoring days: 21 days with nuubo7 three leads ECG wearable best
Findings: 3 episodes of AF longer than 1 hour each

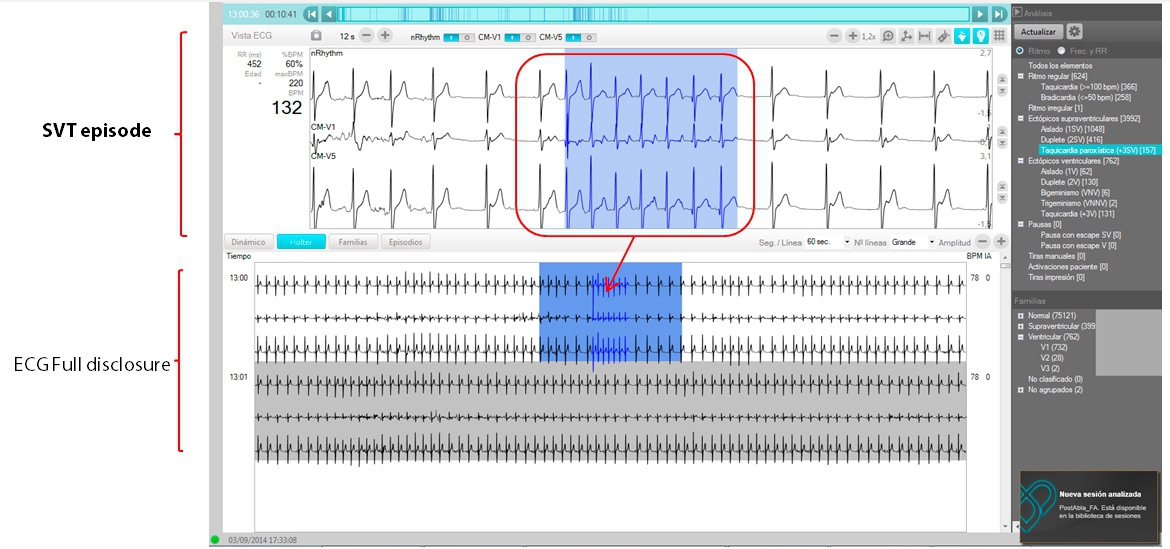

Paciente 3 caso: Palpitaciones por SVTs

Patient: 53 years old male
Symptoms: Frequent palpitations
History: The patient has no previous adverse event clinical history and no previous Holter has been performed.
ECG Monitoring days: 7 days with nuubo7 three leads ECG wearable best
ECG analysis mode: Holter
Findings: Supraventricular Paroxismal Tachycardias

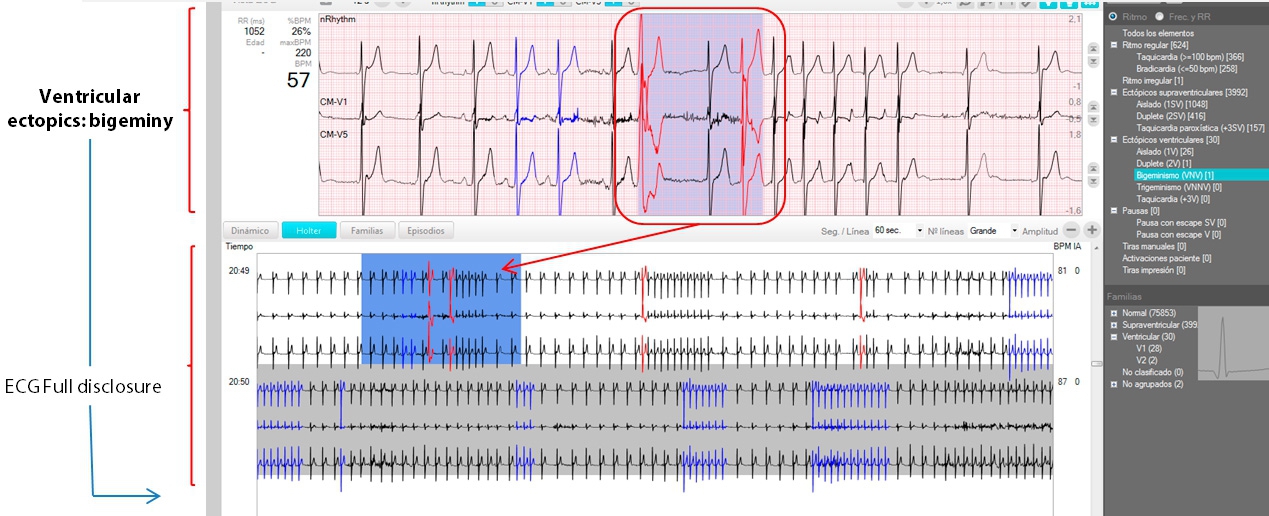

Patient 4 case: Frequent palpitations (Ventricular ectopics)

Patient: 62 years old female
Symptoms: Frequent palpitations on daily basis
ECG Monitoring days: 7 days with nuubo7 three leads ECG wearable best
ECG analysis mode: Holter
Findings: Supraventricular extrasystoles conducted with aberrance through short coupling intervals

Arrhythmia Risk Stratification Patient Cases

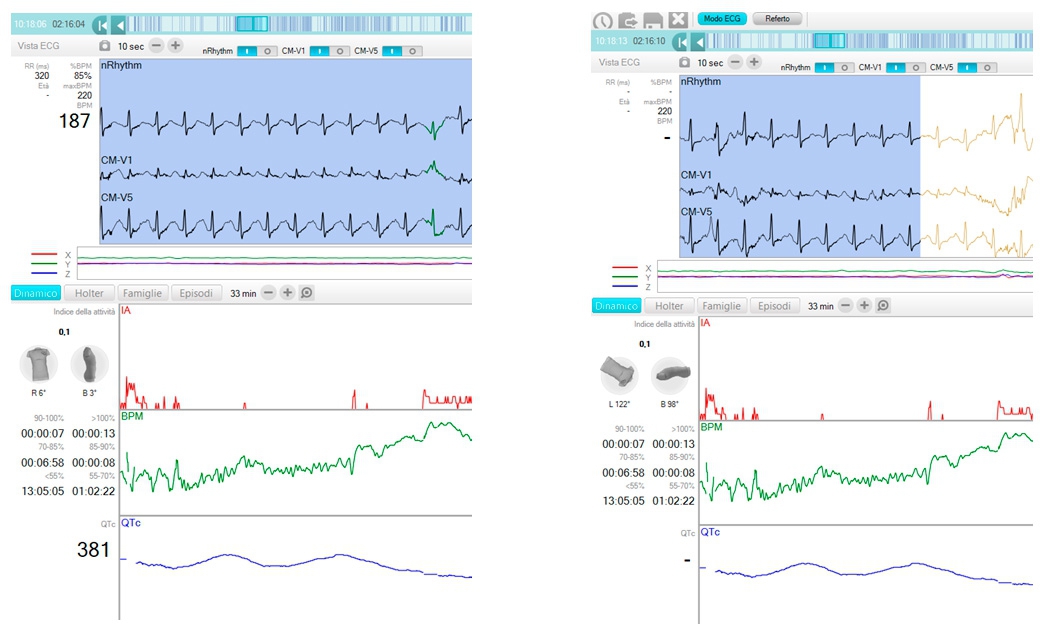

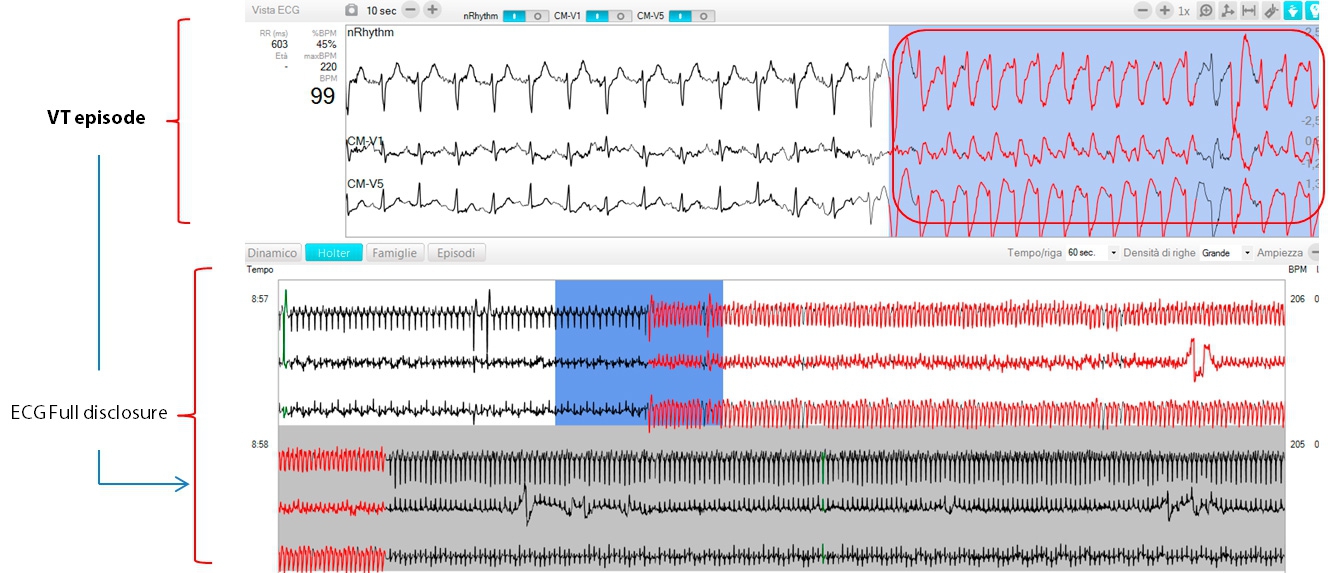

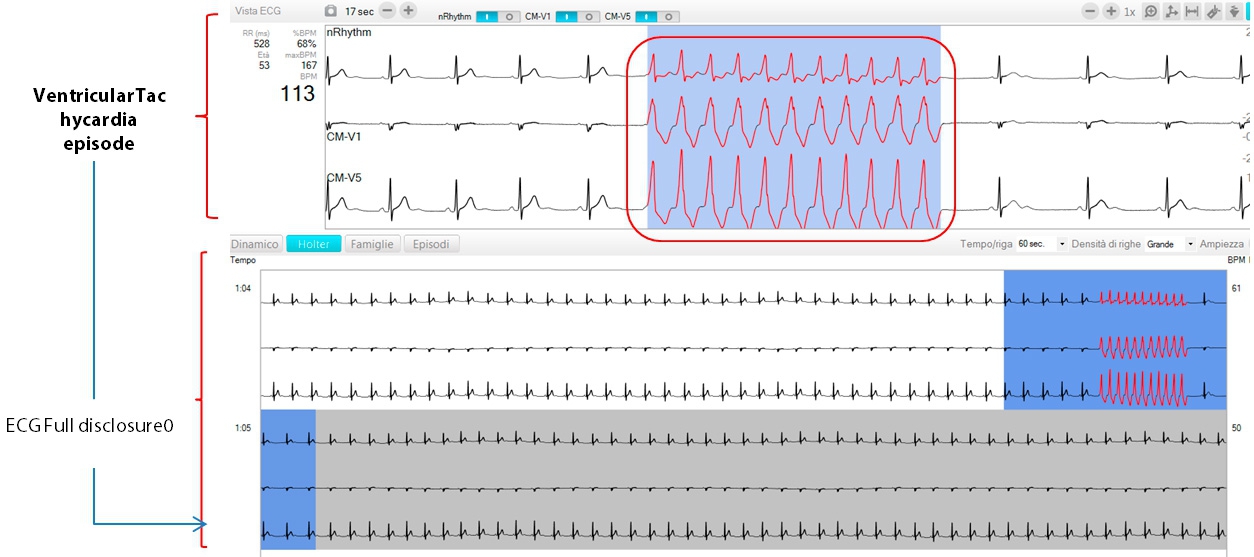

Patient 1 case: Palpitations during Sports due to VTs

Patient: Male 47 years old
Symptoms: Palpitations only during sports exercising
History: Holter negative, stress test negative
ECG Monitoring days: 30 days, 8 cycling sessions with nuubo Active 3 leads ECG wearable best
Findings: During the 7th cycling training session 3 VTs episodes were registered

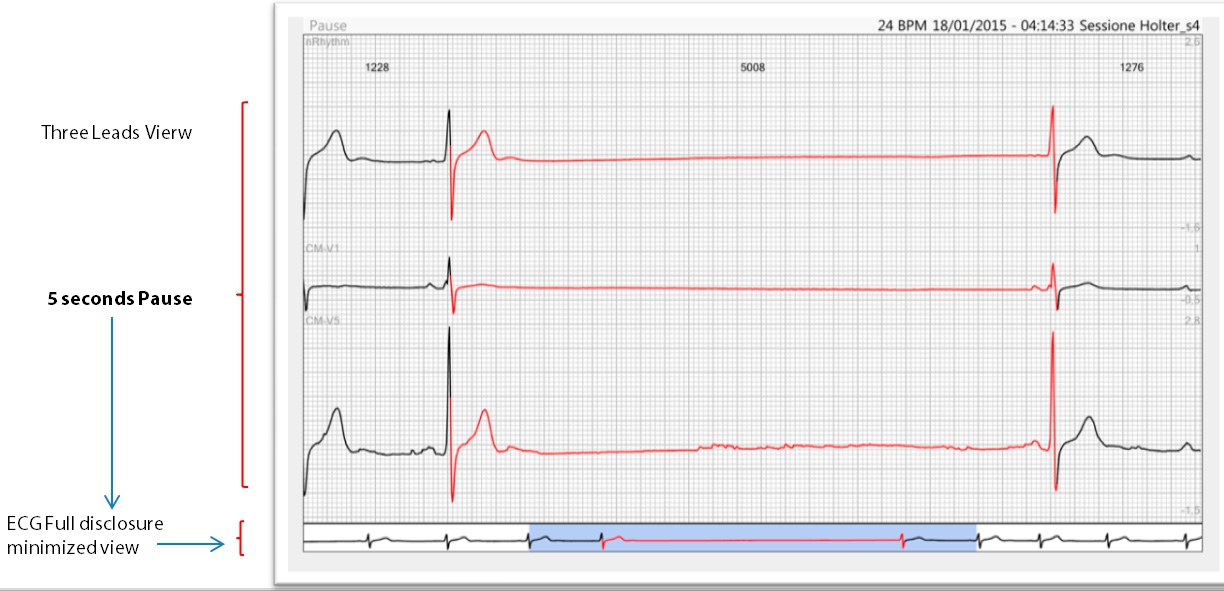

Patient 2 case: Arrhythmia risk management: Pauses

Patient: 19 years old male.
Symptoms: No symptoms.
History: 24 hour Holter negative.
ECG Monitoring days: 15 days with nuubo15 three lead ECG wearable best.
Findings: Pause of 5 seconds while sleeping during the night.

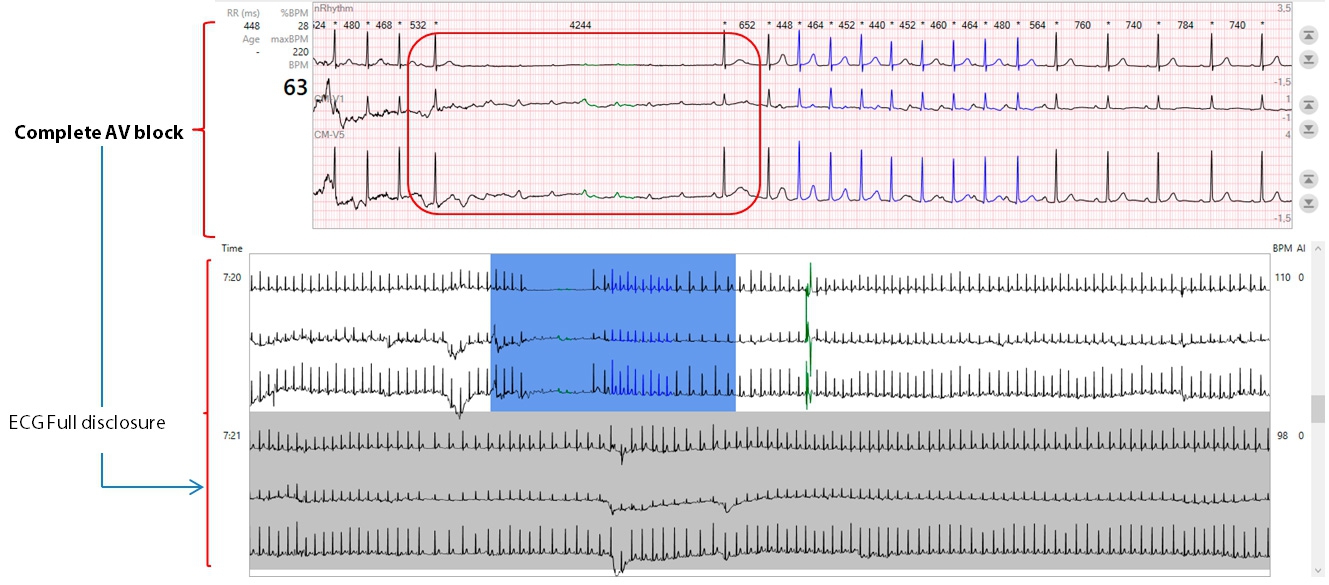

Patient 3 case: Arrhythmia risk: complete AV block

Patient: 11 years old girl
Symptoms: Transitient loss of consciencie every 3 days
History: Normal ECG. Normal ECO. The patient is referred because of symptoms
ECG Monitoring days: 13 days with nuubo7 Pediatric , three leads EGC wearable best
Findings: complete AV block

Patient 4 case: Arrhythmia risk management: VT

Patient: 55 years old female
Symptoms: Frequent tachycardia episodes
History: Brugada syndrome diagnosed, ECG monitoring to asses a defibrillator implantation
ECG Monitoring days: 21 days with nuubo15 three lead ECG wearable best
Findings: Non Sustained Ventricular Tachycardia NSVT episodes

Atrial Fibrillation Patient Cases

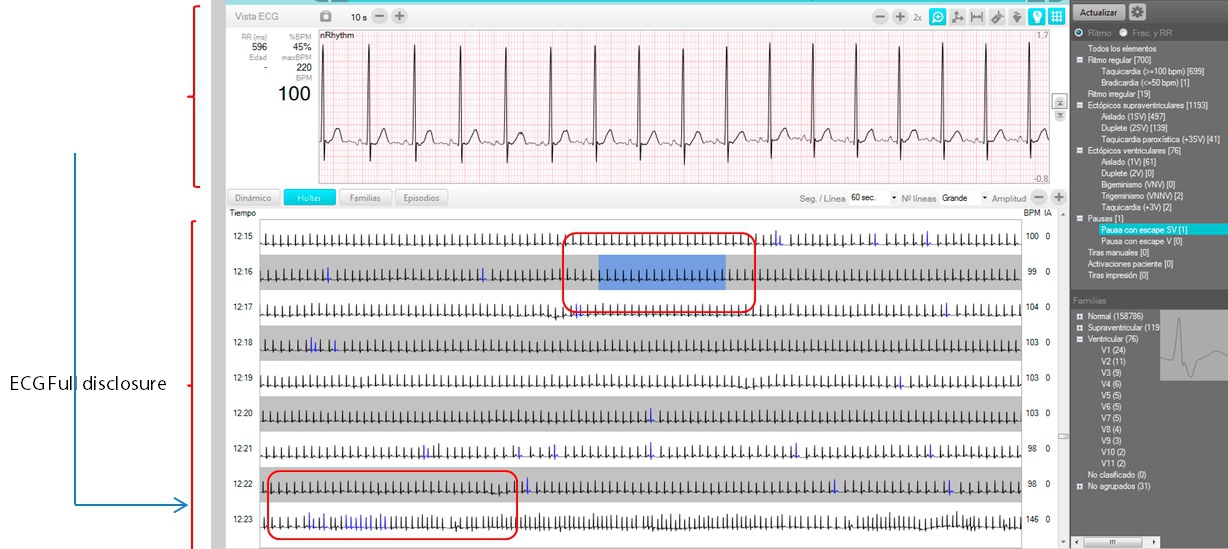

Patient 1 case: Atrial Fibrillation (I of IV) sinus rhythm

Patient: 63 year old female
Symptoms: Pre AF ablation monitoring
History: Paroxysmal AF
ECG Monitoring days: 21 days with nuubo45 one lead ECG wearable band
Findings: Frequent supraventricular extrasystoles and paroxysmal Atrial Fibrillation episodes

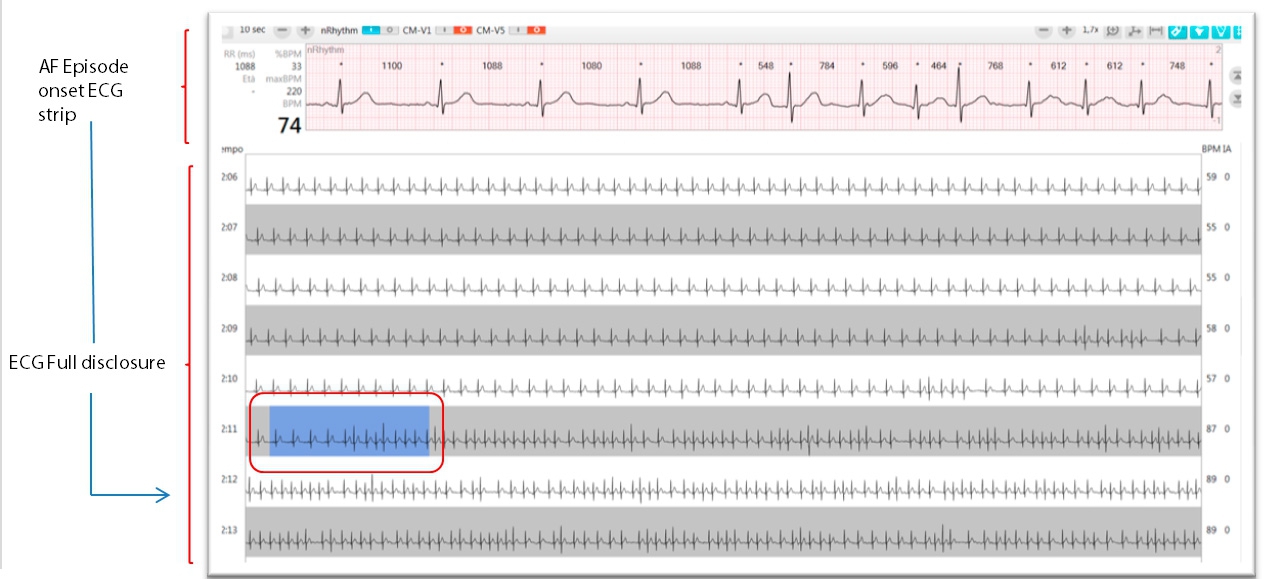

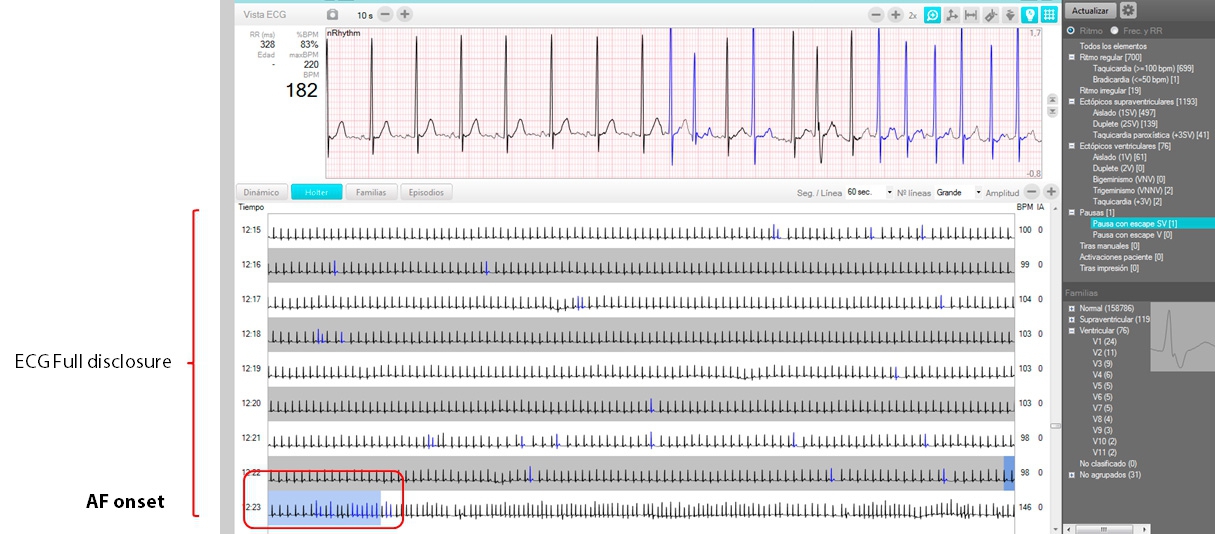

Patient 1 case: Atrial Fibrillation (II of IV) AF onset

Patient: 63 year old female
Symptoms: Pre AF ablation monitoring
History: Paroxysmal AF
ECG Monitoring days: 21 days with nuubo45 one lead ECG wearable band
Findings: AF onset

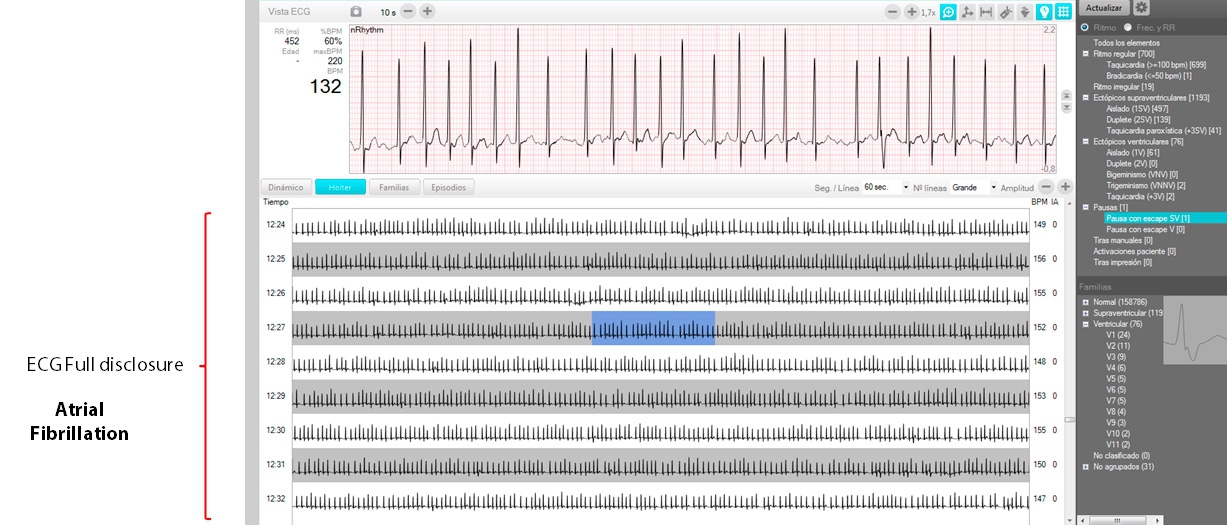

Patient 1 case: Atrial Fibrillation (III of IV) AF

Patient: 63 year old female
Symptoms: Pre AF ablation monitoring
History: Paroxysmal Atrial Fibrillation
ECG Monitoring days: 21 days with nuubo45 one lead ECG wearable band
Findings: Atrial Fibrillation

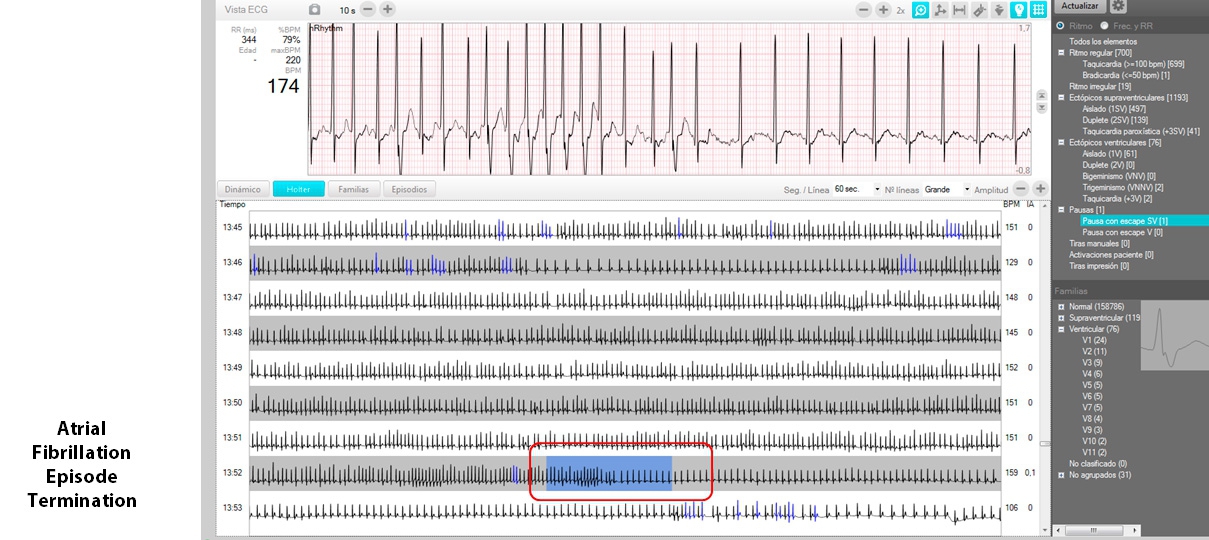

Patient case: Atrial Fibrillation (IV of IV) AF Stops

Patient: 63 year old female
Symptoms: Pre AF ablation monitoring
History: Paroxysmal AF
ECG Monitoring days: 21 days with nuubo45 one lead ECG wearable band
Findings: Atrial Fibrillation stops at 13h52 after a duration of 1,5 hours

Cryptogenic Stroke Patient Cases

Patient 1 case: AF episodes after stroke

Patient: Female 62 y/o
Symptoms: Dizziness, syncope
History: previous stroke with partial loss of speaking
ECG Monitoring days: 30
Findings: Several Paroxysmal Atrial Fibrillation post-stroke

Post AF Ablation Patient Cases

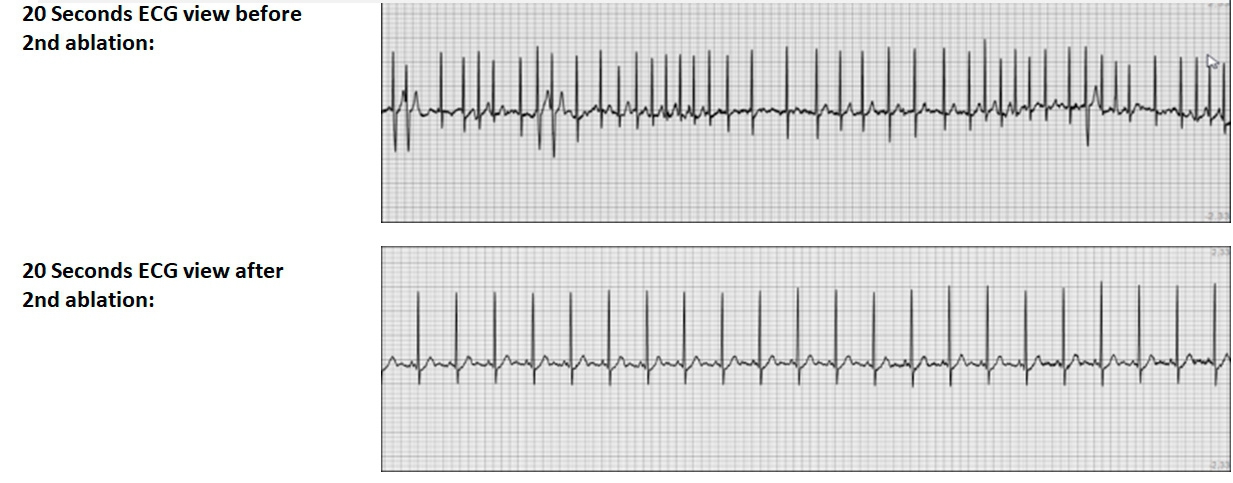

Patient 1 case: Post AF ablation monitoring

Patient: 65 year old male
Symptoms: 4 months after first ablation he starts suffering new episodes of paroxysmal AF
History: Permanent AF ablation procedure performed, nuubo monitoring confirms AF recurrence and a second AF ablation is performed to evaluate AF recurrence
ECG Monitoring days: 7 days
Findings: No AF episodes recurrence after second AF ablation is performed.

Patient 2 case: post AF ablation follow up (I of II)

Patient: Professional football player
Symptoms: Post AF ablation monitoring for follow up
History: AF ablation performed
ECG Monitoring days: 21 days with nuubo Active three leads ECG wearable best
Findings: AF episodes during training

Patient case: post AF ablation follow up (II of II)

Arrhytmias at Sports Patient Cases

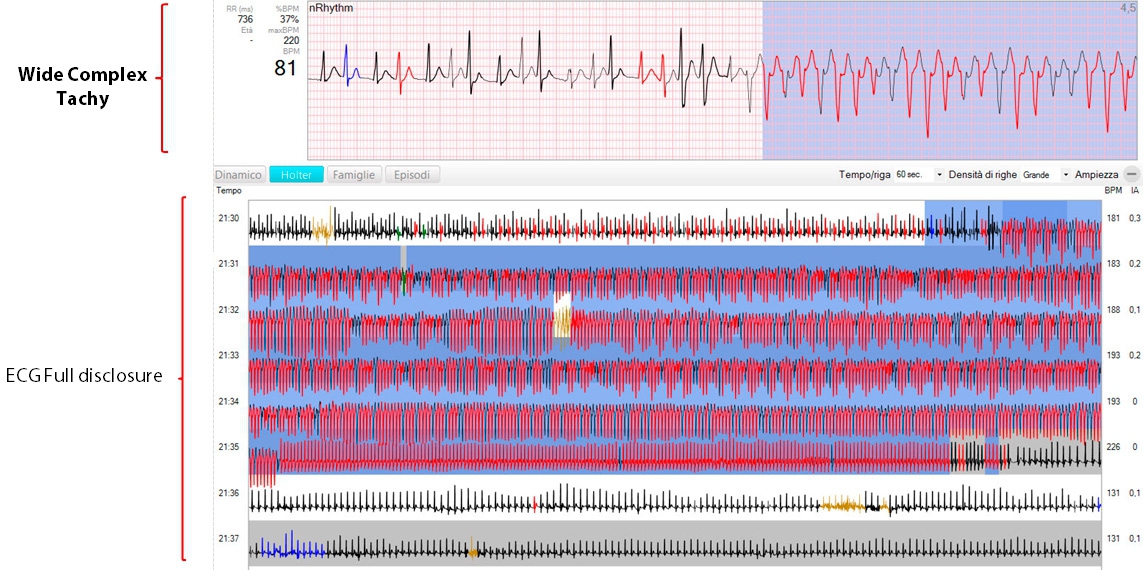

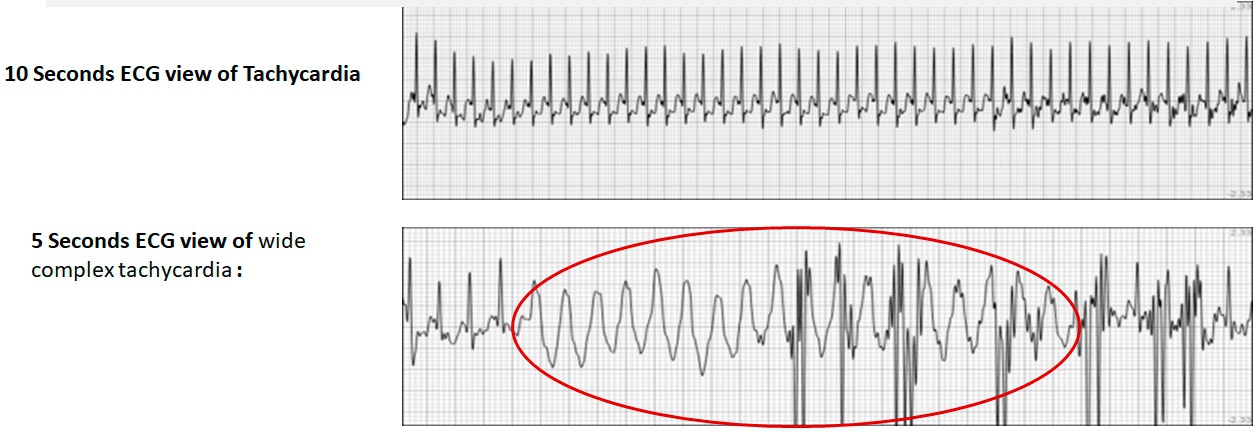

Patient 1 case: Palpitations during sports

Patient: 14 year old male
Symptoms: palpitations during sports (football player)
ECG Monitoring days: 7 days with nuubo Active three lead ECG wearable best
Findings: Wide Complex Tachycardias during strong physical activity
